Mounting

The optional mounting kit clamps the SubCam to a pole. The exploded view below shows the full assembly.

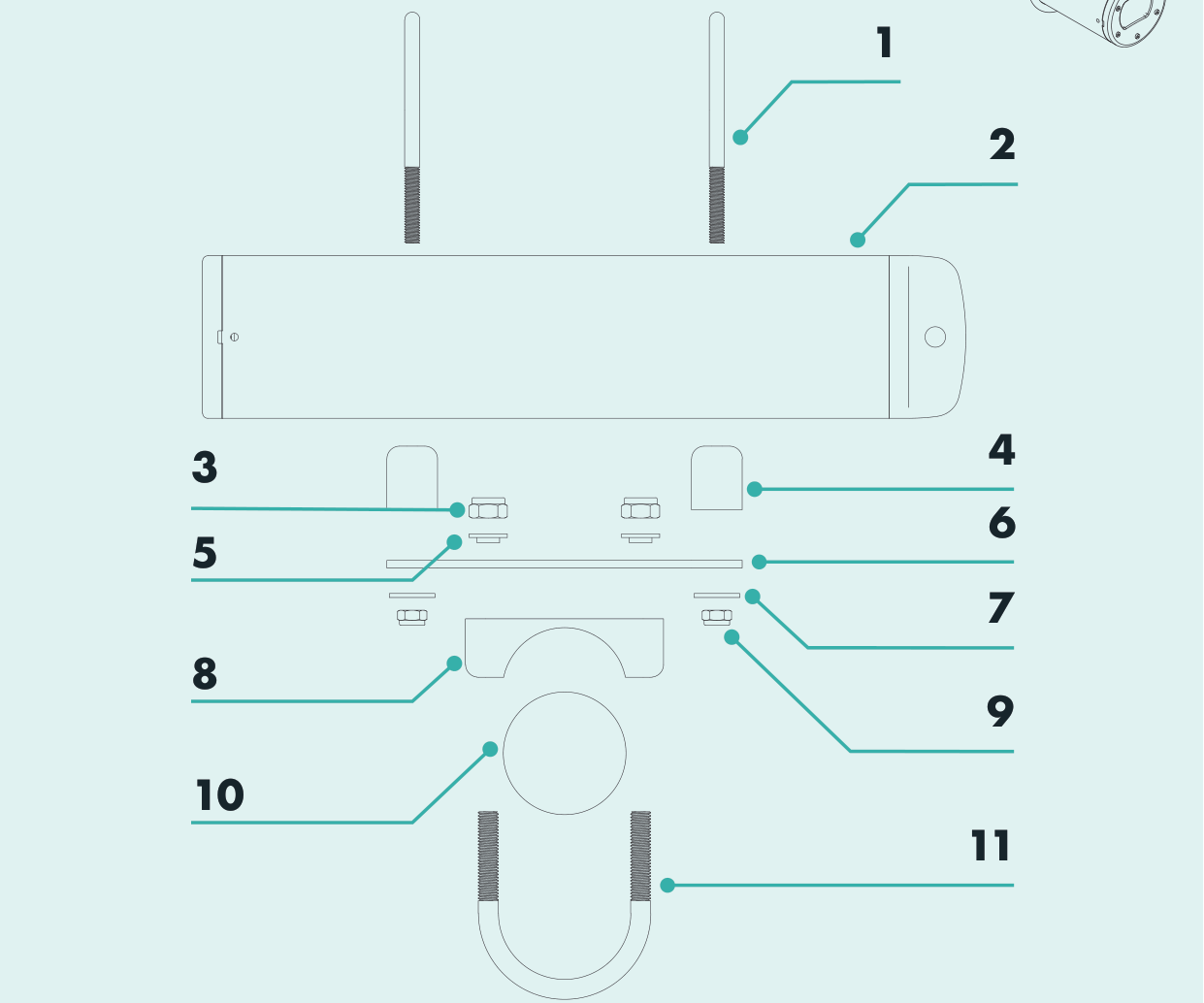

SubCam pole mounting assembly, exploded view.

  1. SS A4 u-bolt
  2. SubCam
  3. Galvanised nut M8
  4. Plastic SubCam coupler
  5. Nylon shoulder washer
  6. SS 316 plate
  7. SS A4 washer M6
  8. Plastic pole coupler
  9. M6 nyloc nut
  10. Pole (not included)
  11. Galvanised u-bolt

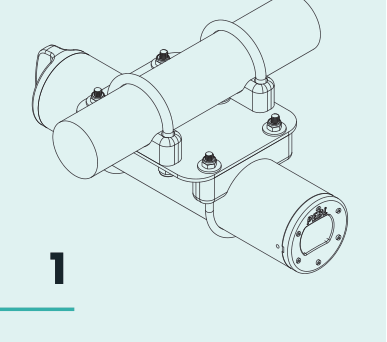

SubCam mounted on a pole, assembled view.

info

For benthic (seabed) deployments on a Microlander frame instead of a pole, see the Mooring Guide.
